HOP-3003 IP Phone

HOP-3003 IP phone made by 5111soft uses 5111PHONE software.
The phone uses menu (SIP IAX2 H323 MGCP) slightly different from our standard design, but the usage of web (SIP IAX2 H323 MGCP) and telnet SIP IAX2 H323 MGCP) are the same.
Front
Outlook of HOP3003 IP phone.

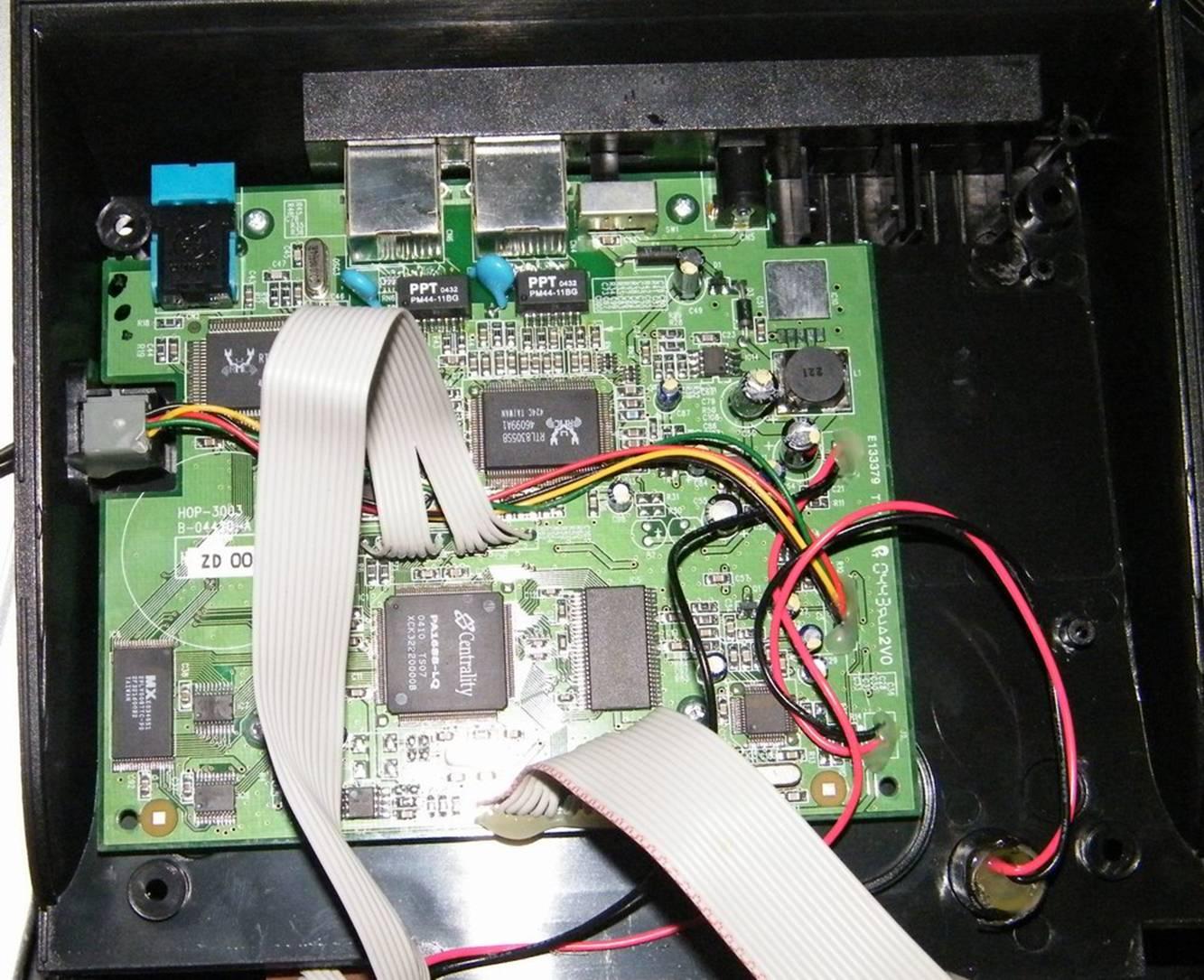

PCB, the HOP-3003 print indicates it is from the same factory as 5111PHONE and PINGHE. Large
PCB of HOP3003 IP phone.
PA1688-LQ chip
PA1688LQ chip in HOP3003 IP phone.

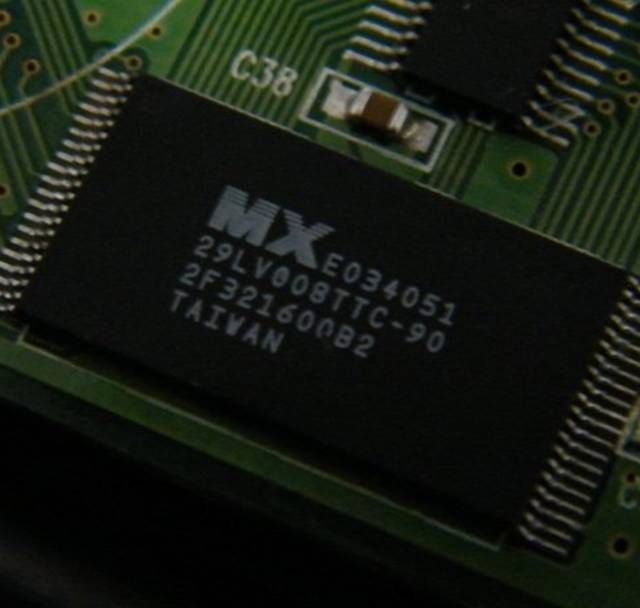

MX29LV008TTC program flash chip
MX29LV008TTC chip in HOP3003 IP phone.

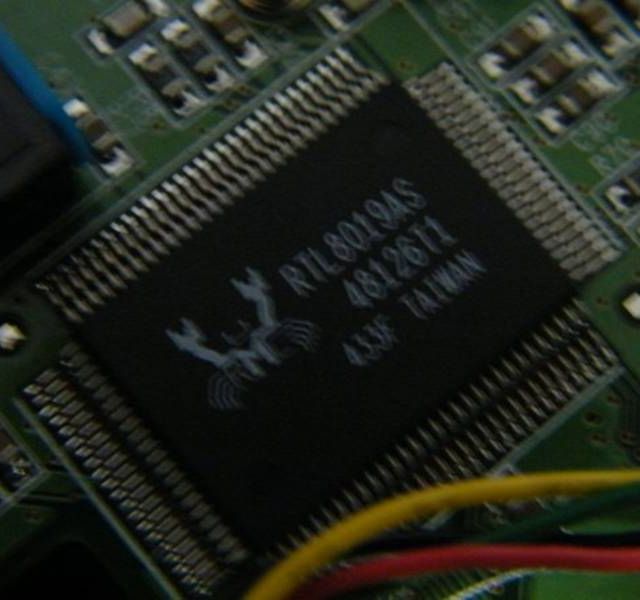

RTL8019AS chip
RTL8109AS chip in HOP3003 IP phone.
RTL8305SB chip
RTL8305SB chip in HOP3003 IP phone.
Above pictures taken by Mr Wu.
