JR168 IP Phone

While Iplink do have PA1688 based JR168S IP phone product. The pictures here are NOT based on our chip. End user found us because it used Palmmicro MAC address. We can not provide upgrade files for this device.

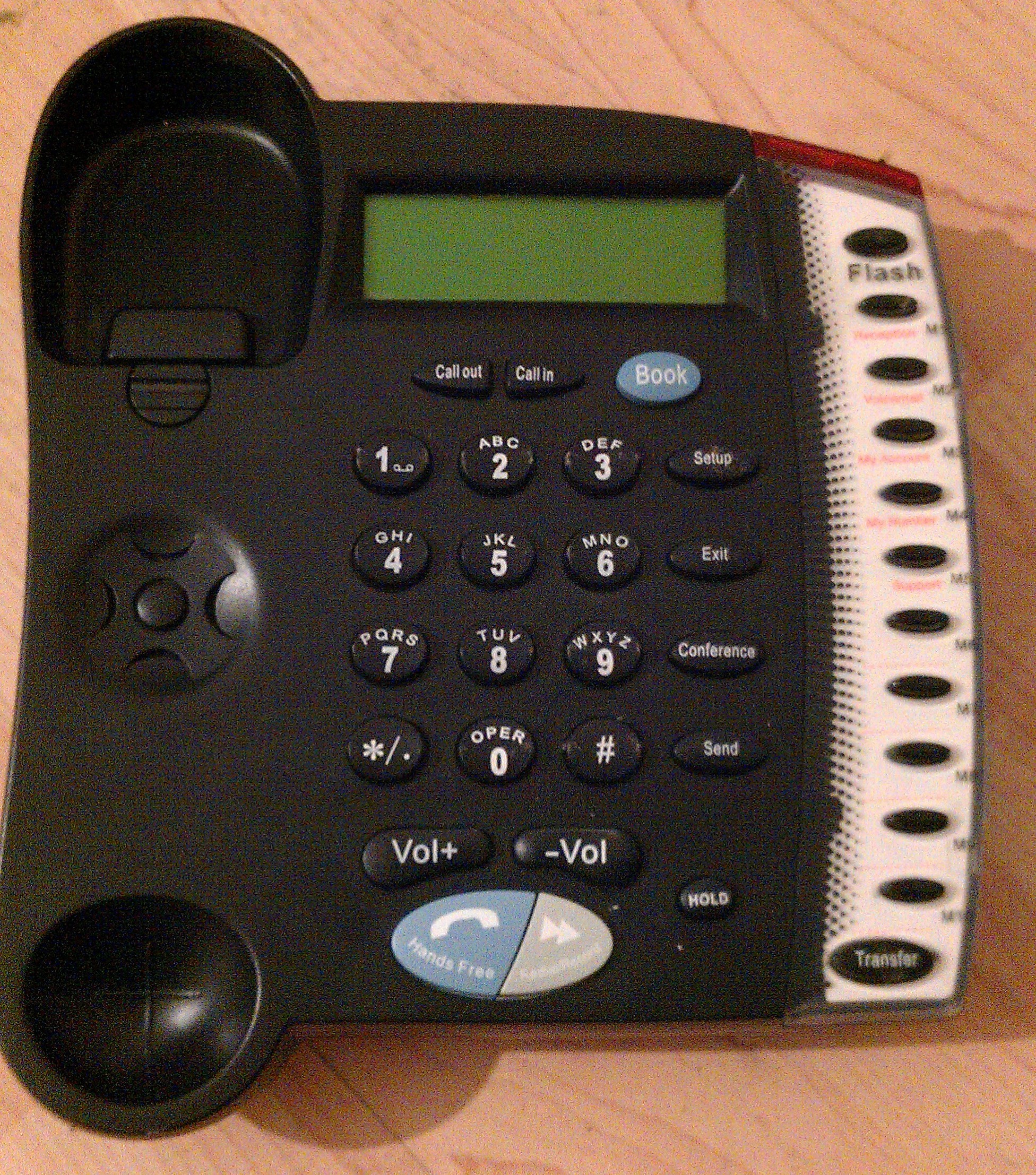

Front. Large

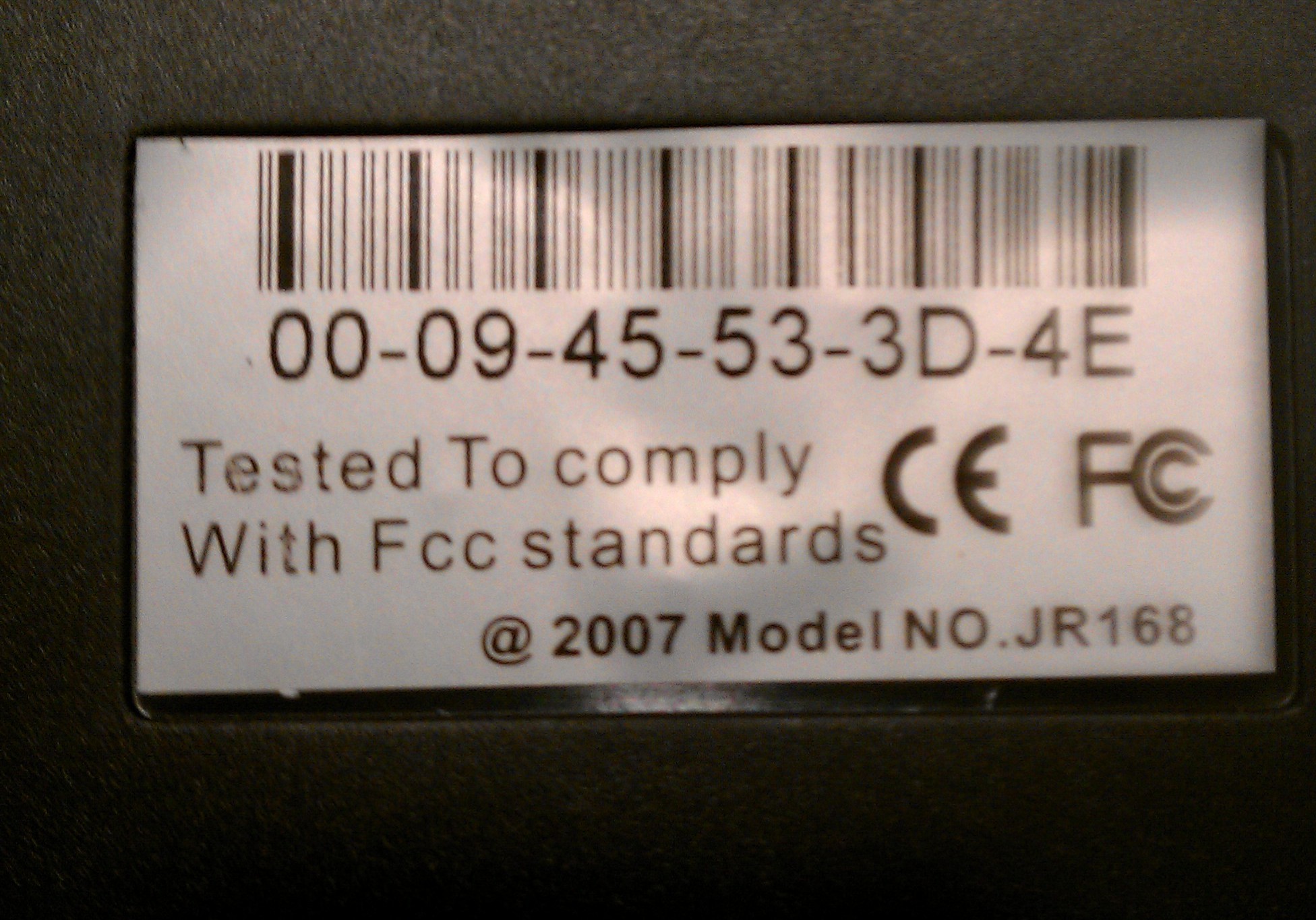

MAC. Large
A typical PA1688 00-09-45 MAC address on an Infineon 21553 IP phone.

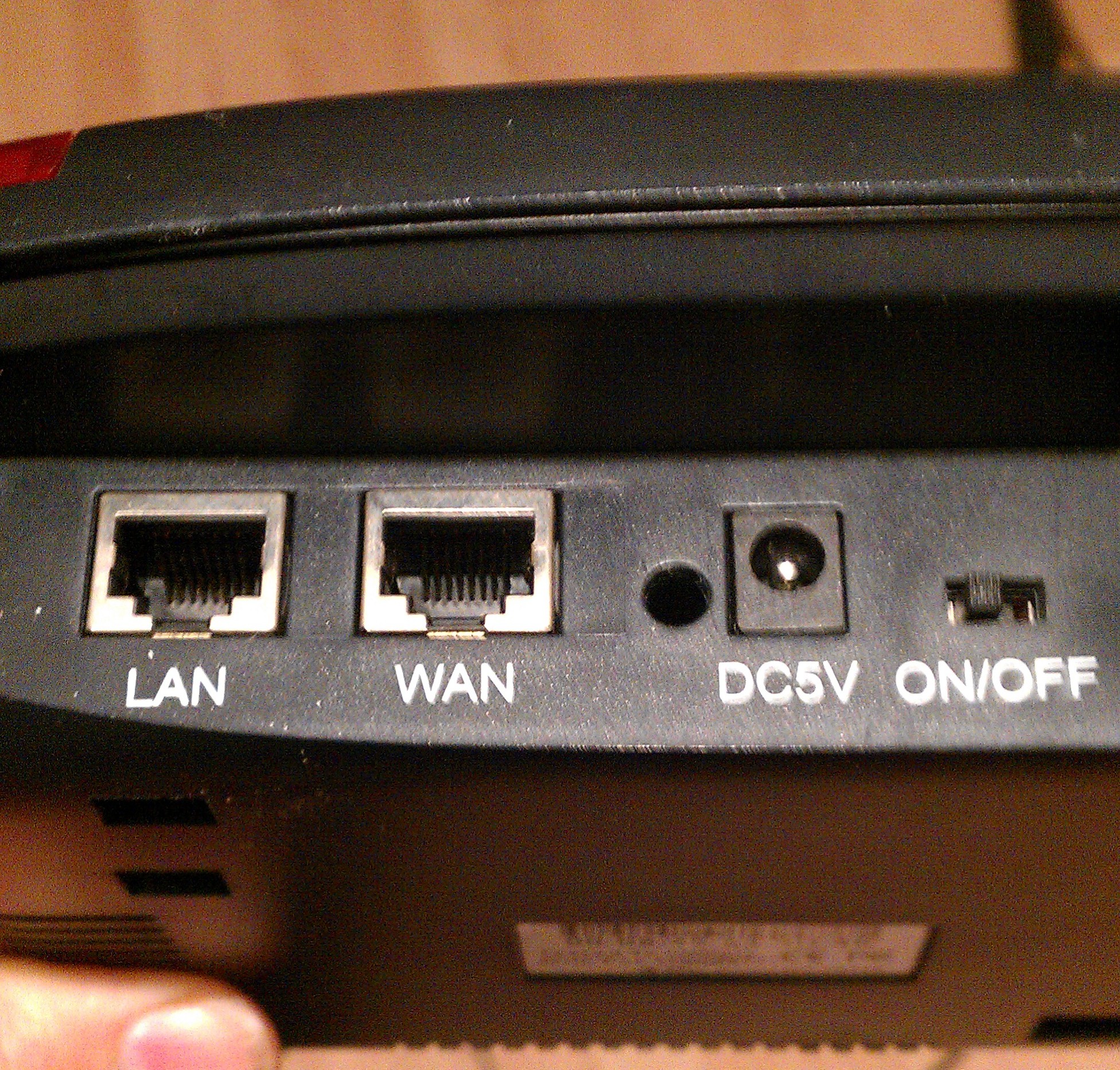

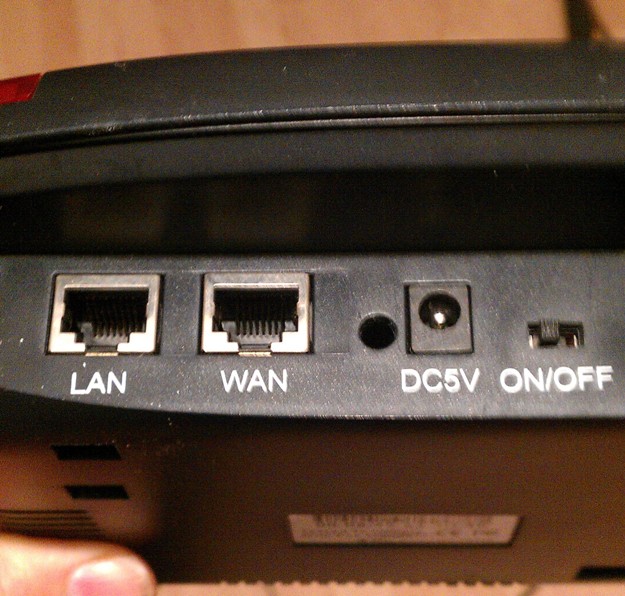

Back. Large

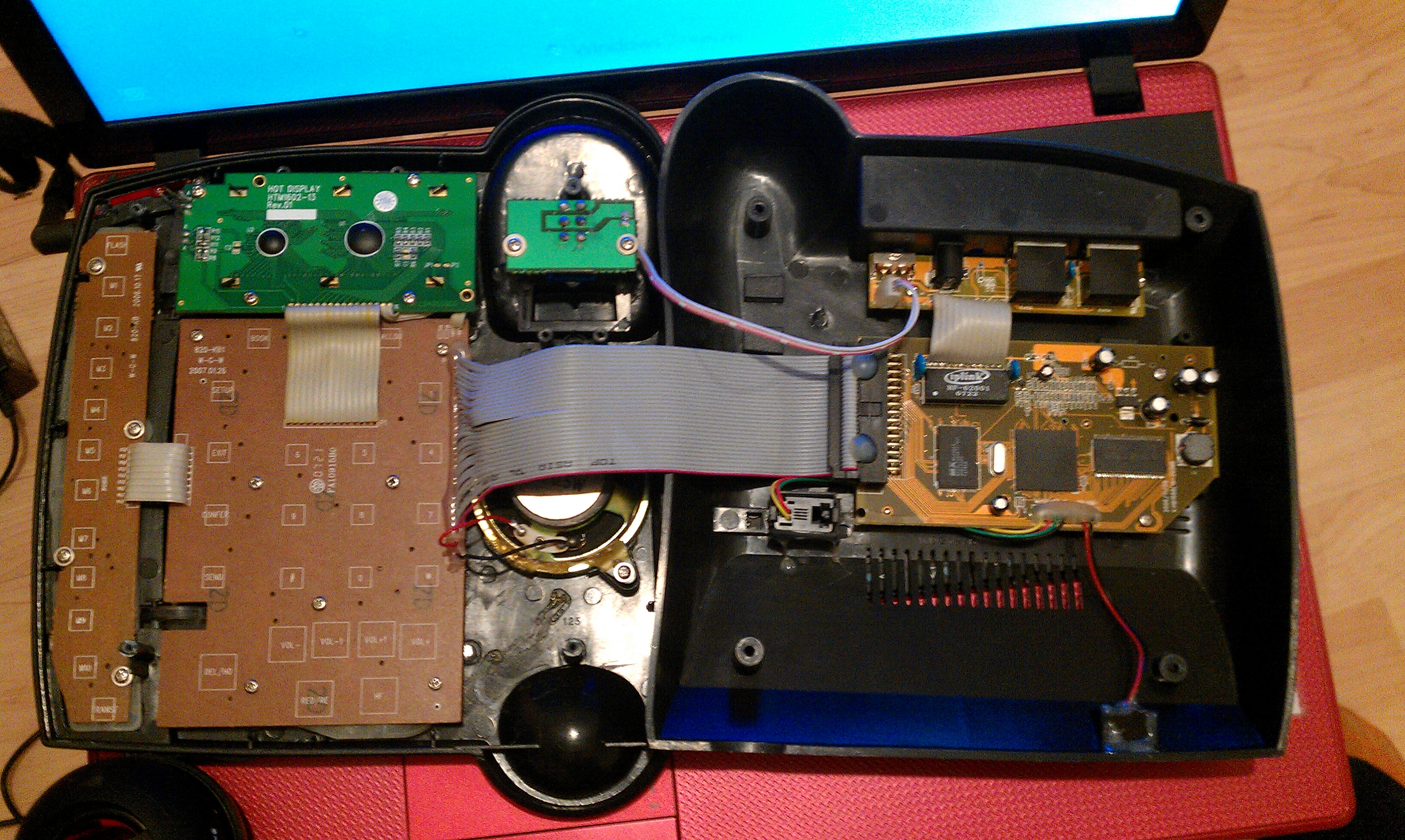

Inside. Large

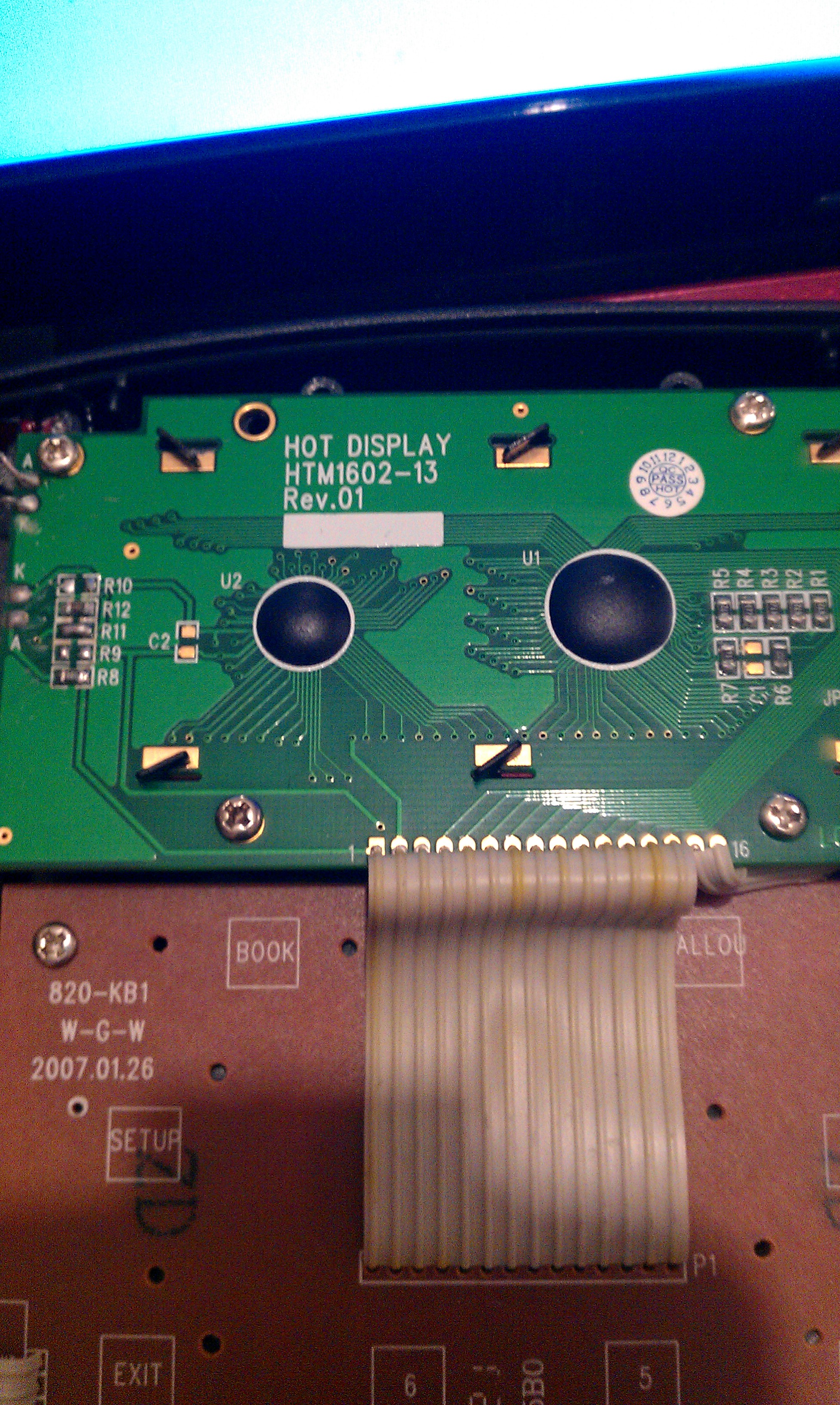

LCD. Large

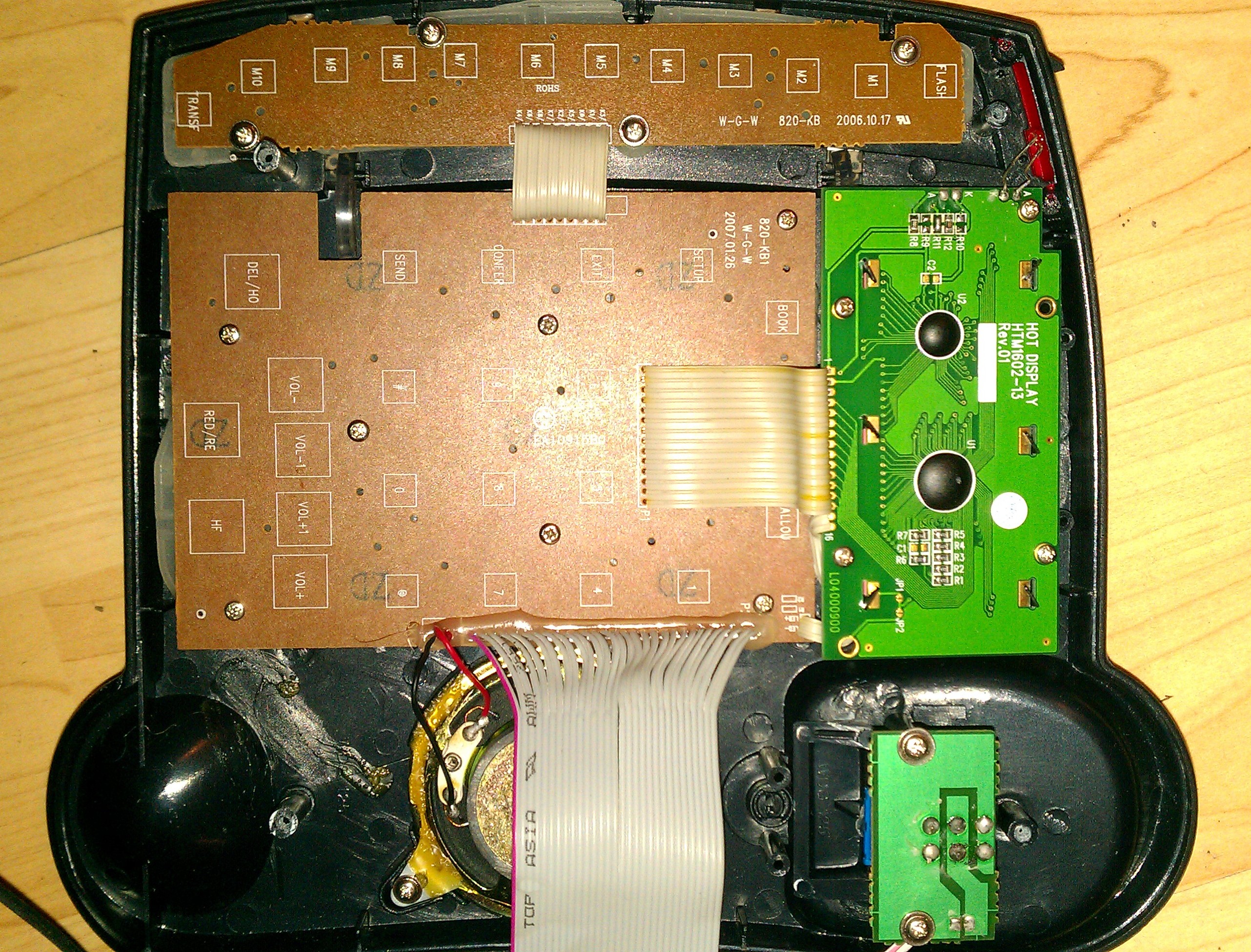

LCD and KEYPAD. Large

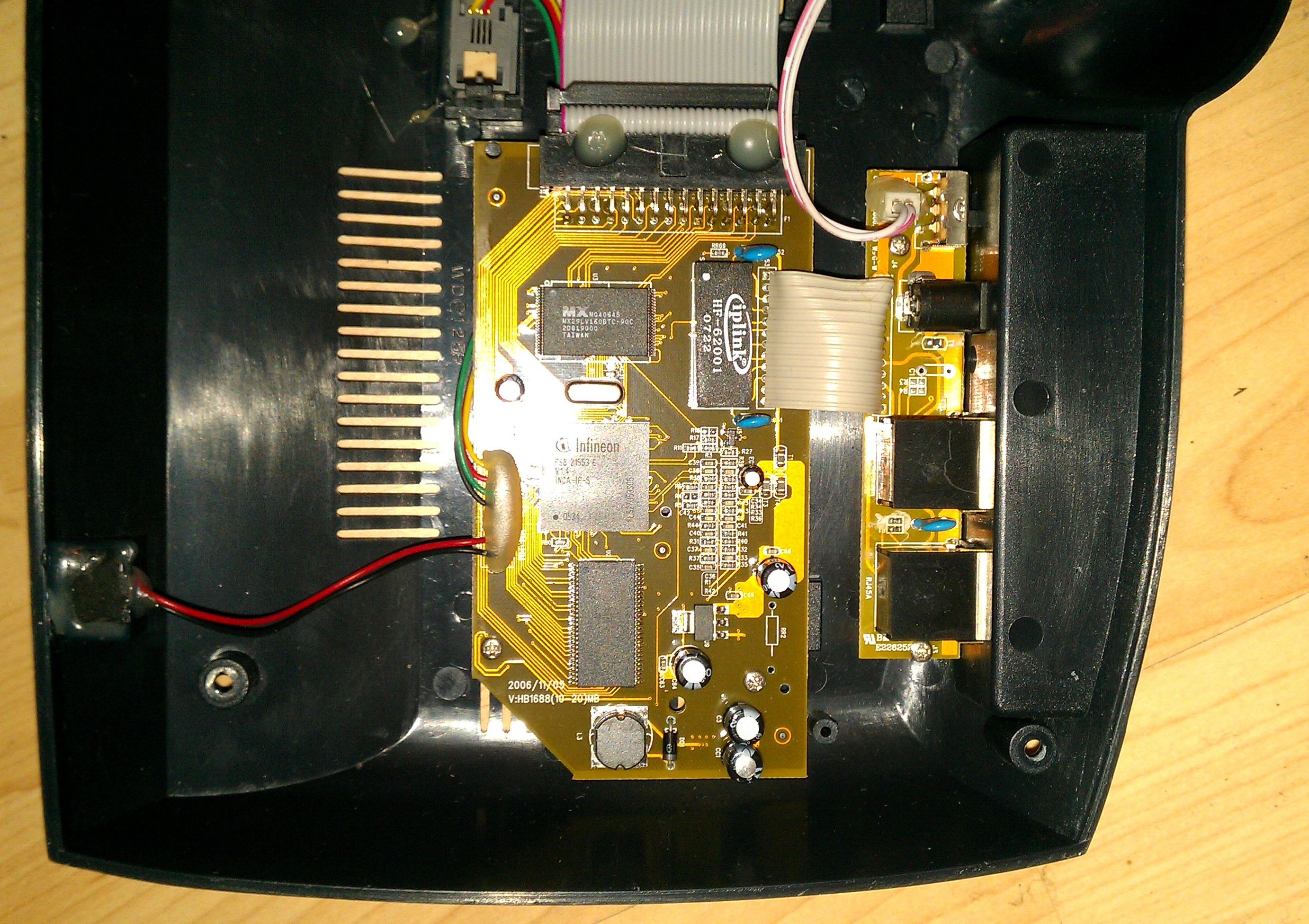

PCB. Large

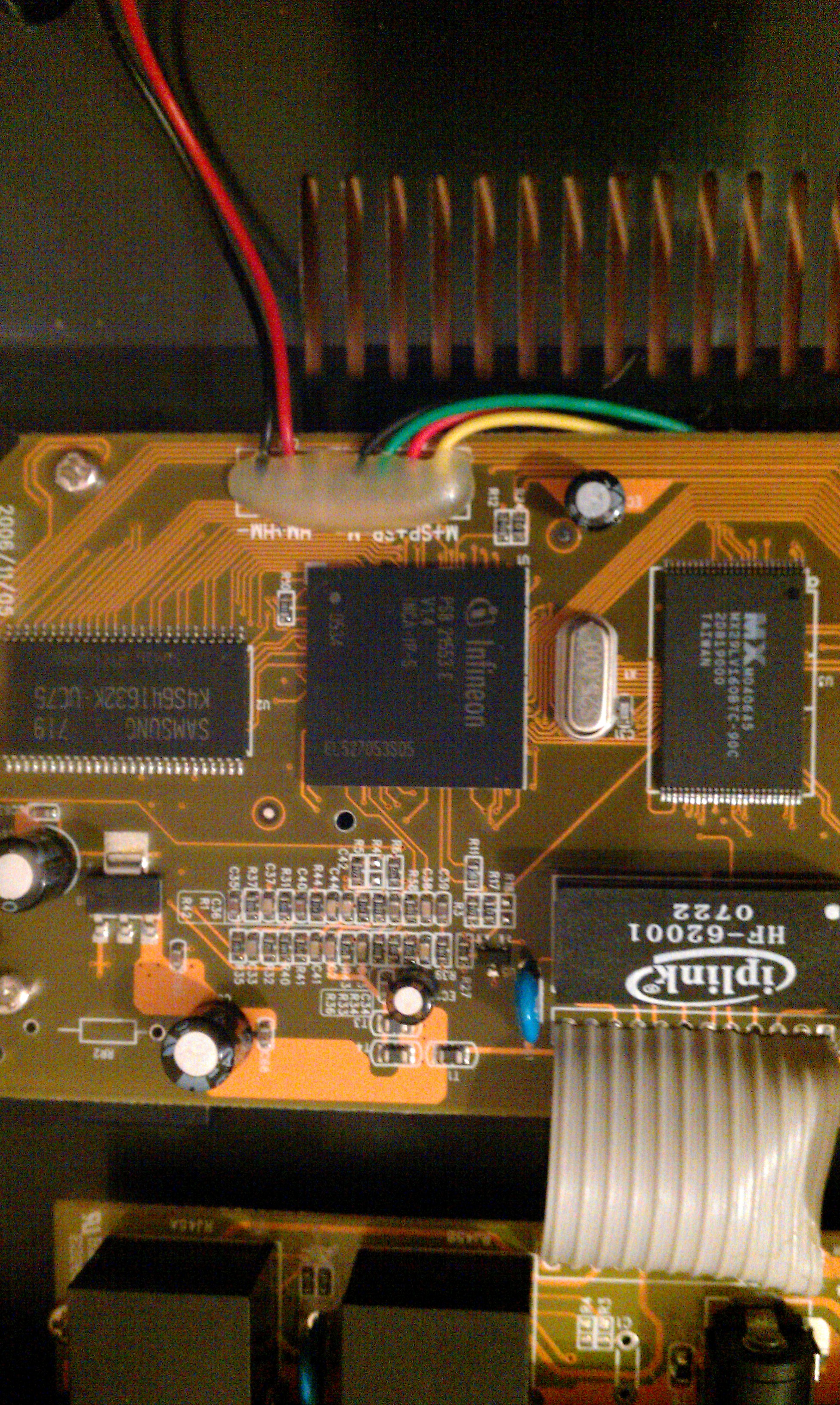

PCB special, Iplink name and Infineon 21553 chipset can be clearly seen here. Large
Above pictures taken by David Lear.
