PA168F IP Phone |
| |
PA168F is an early version of our standard reference design. This hardware type was only in small quantity of production, but users today can still find them by chance. |
Standard reference design IP phone web manual: SIP IAX2 H323 MGCP. Menu manual: SIP IAX2 H323 MGCP. Telnet manual: SIP IAX2 H323 MGCP. |
Outside. With our standard software, the function keys work not as those labels printed there. |
 |

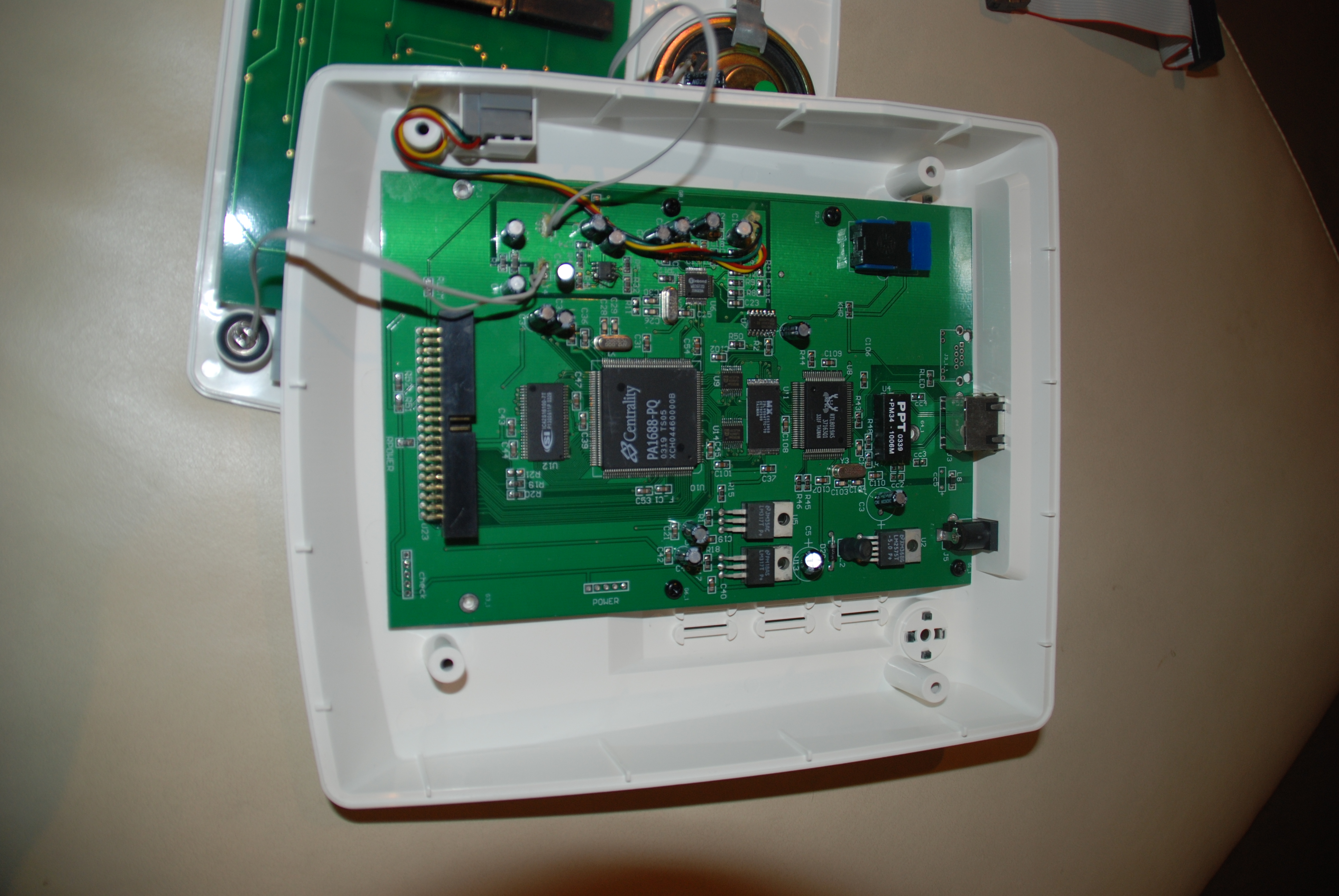

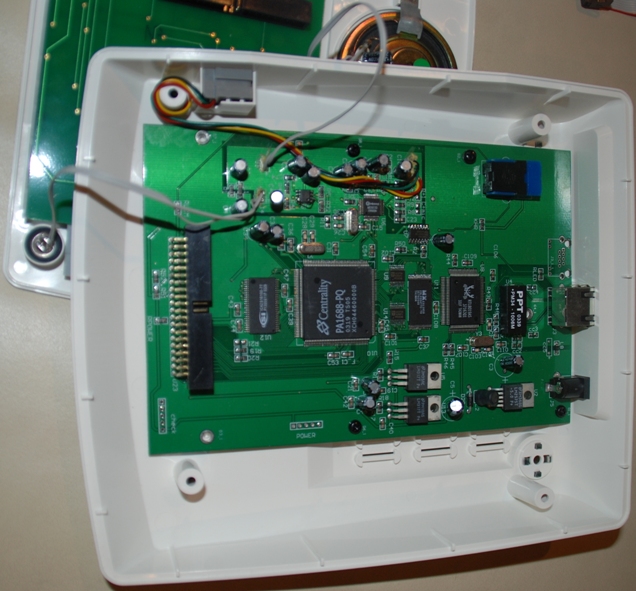

Inside. To save cost, phones in large quantity do not make keypad using 2-layer boards as this one does. Large |
 |

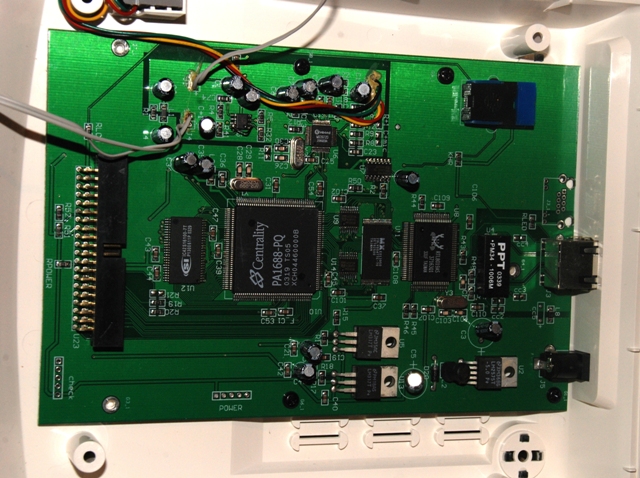

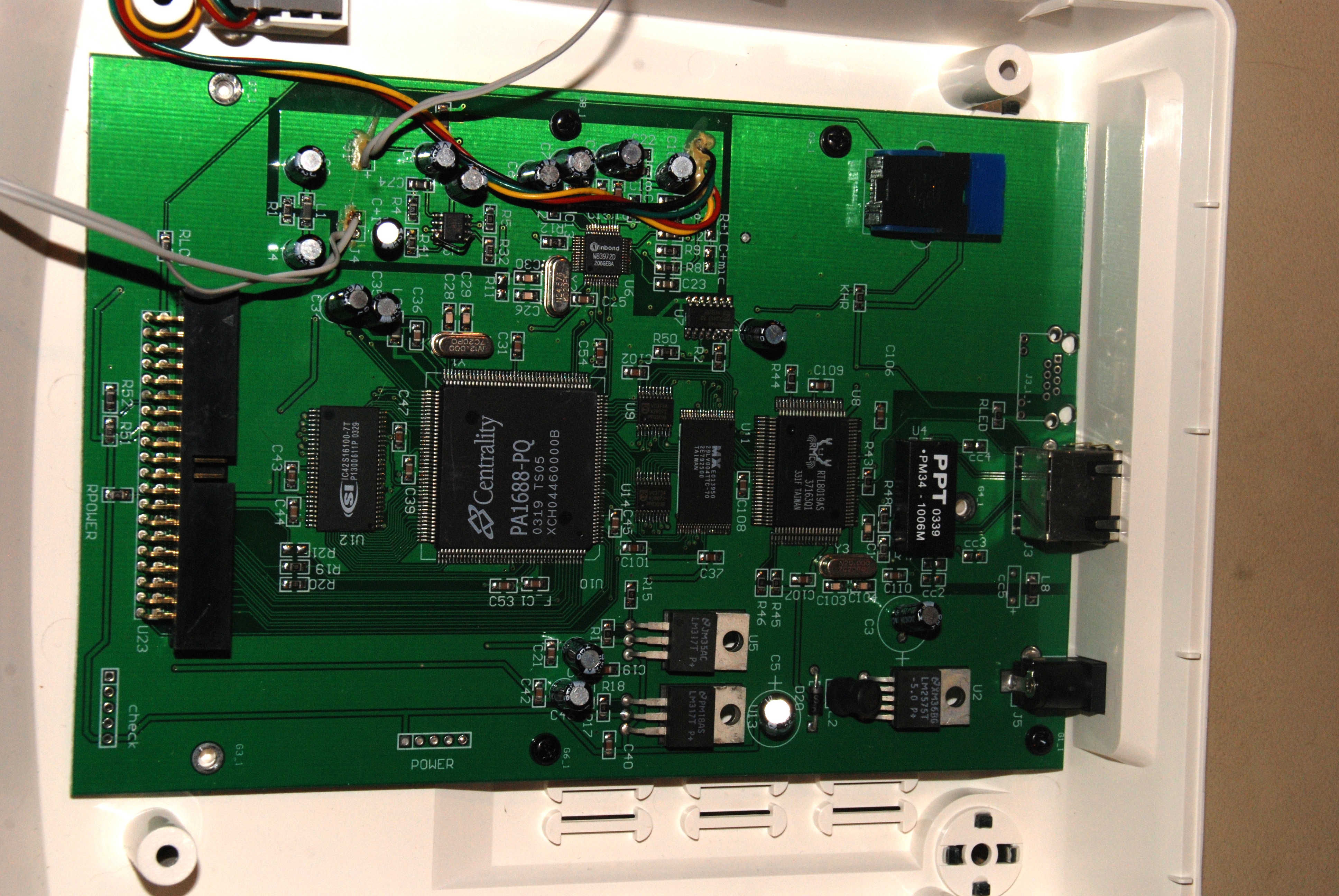

PCB, check the large version for "MX29LV004TTC" program flash as PA168F special mark, and the special AC97 chip "Winbond W83972D" used by this manufacturer. |
 |
Above pictures taken by Charles Pillar. |
