JR168S and China Roby PB-35 IP Phone

It seems that this China Roby PB-35 IP phone uses our standard PA168S software and hardware reference design, it is made by Iplink.
Web manual: SIP IAX2 H323 MGCP. Menu manual: SIP IAX2 H323 MGCP. Telnet manual: SIP IAX2 H323 MGCP.

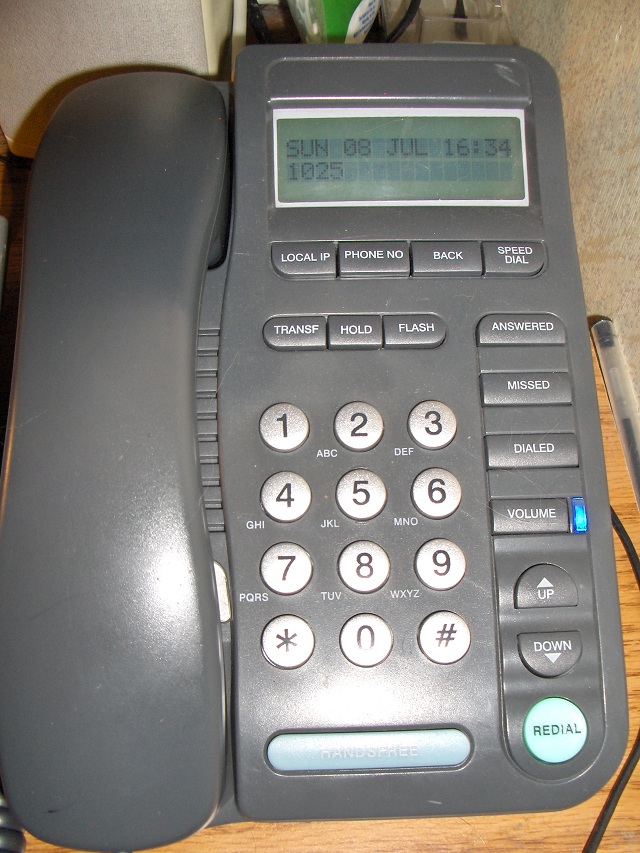

Front. Although TRANSF, HOLD and FLASH keys do not work with standard PA168S software, it is not a surprise considering PA1688 software has never been ready with call transfer function. Large
China Roby PB-35 IP phone outlook.

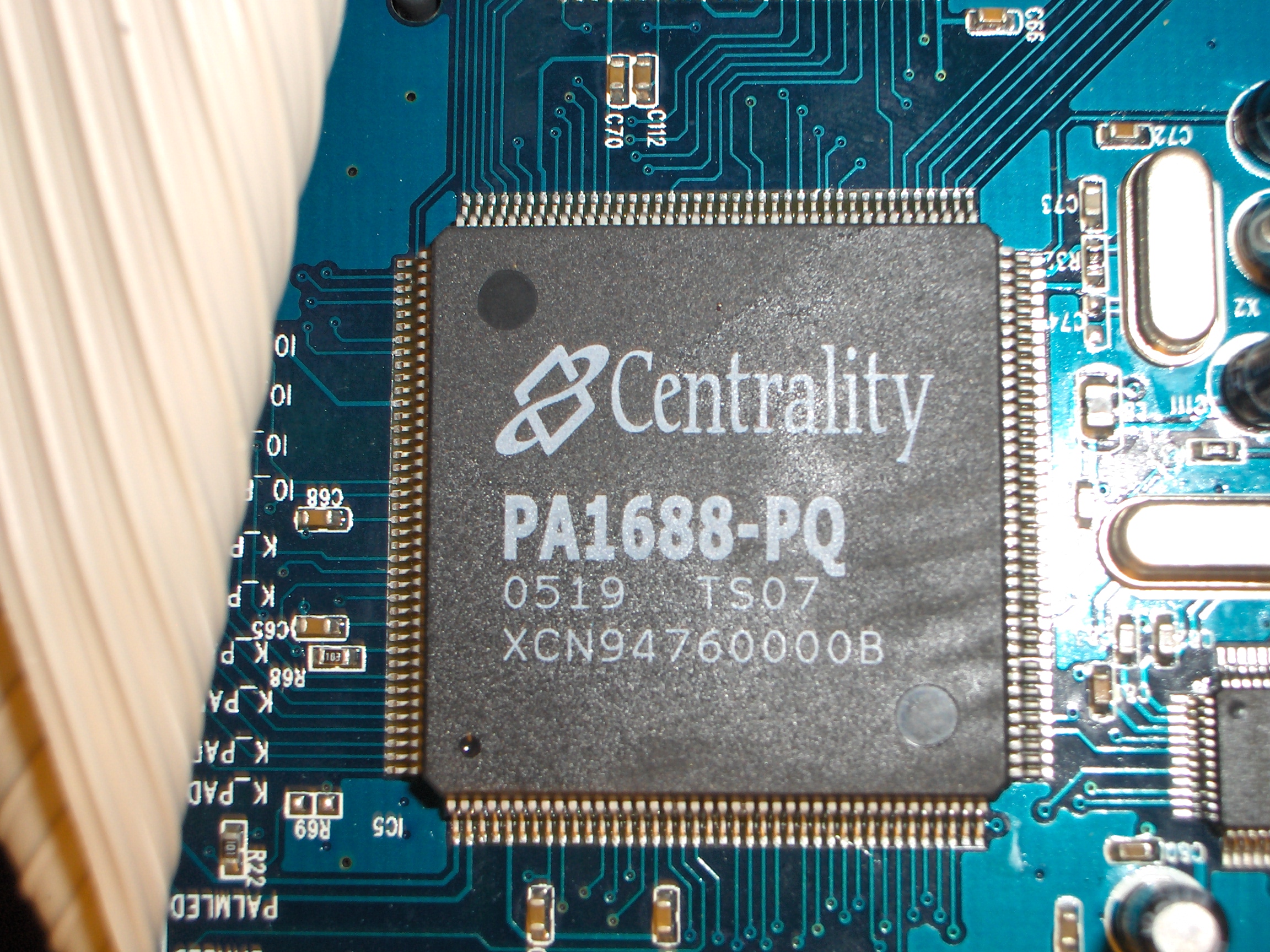

Centrality PA1688-PQ. Large
PA1688PQ chip on China Roby PB-35 IP phone inside PCB board.

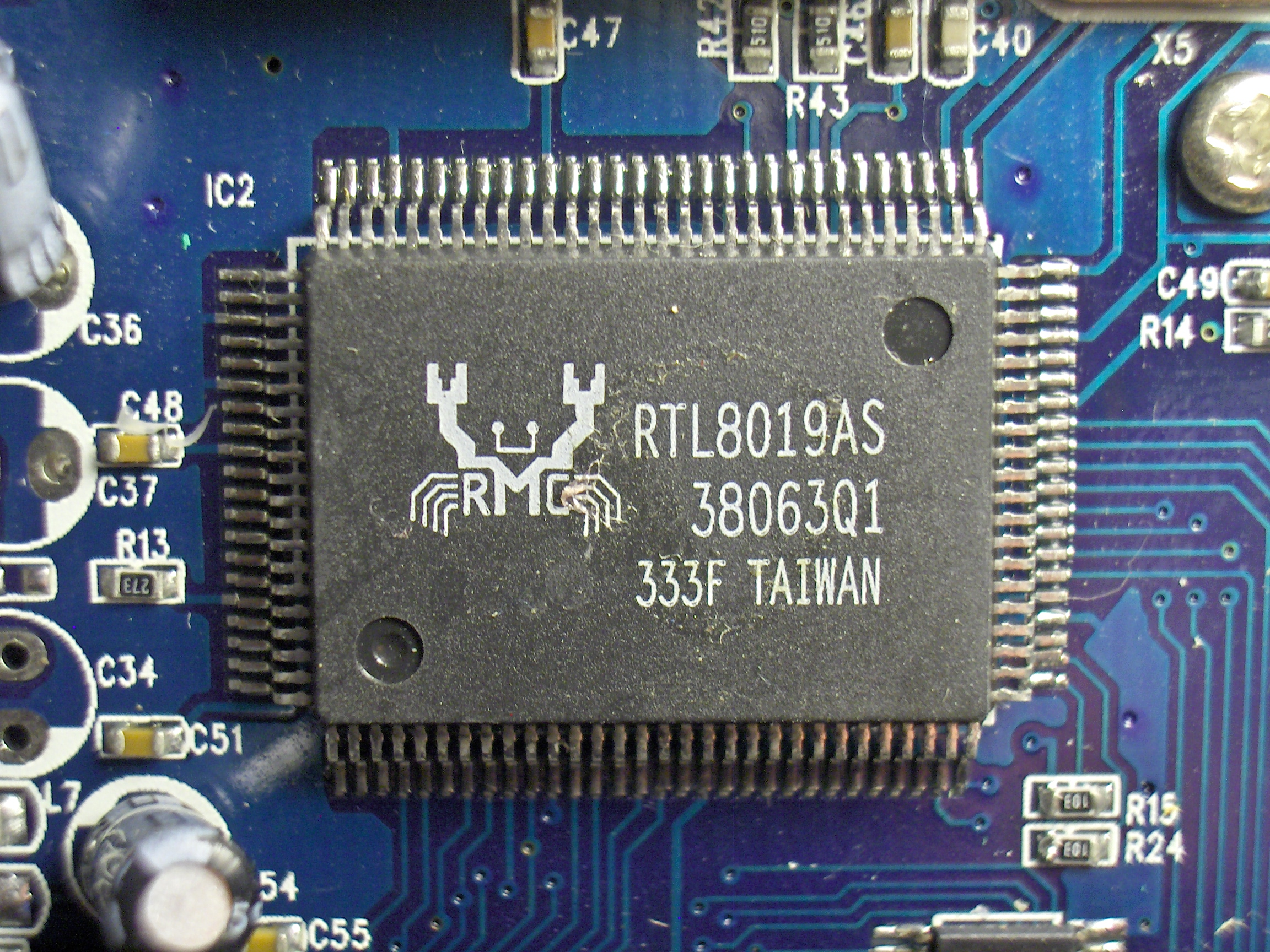

Realtek RTL8019AS ethernet chip. Large
RTL8019AS chip on China Roby PB-35 IP phone inside PCB board.

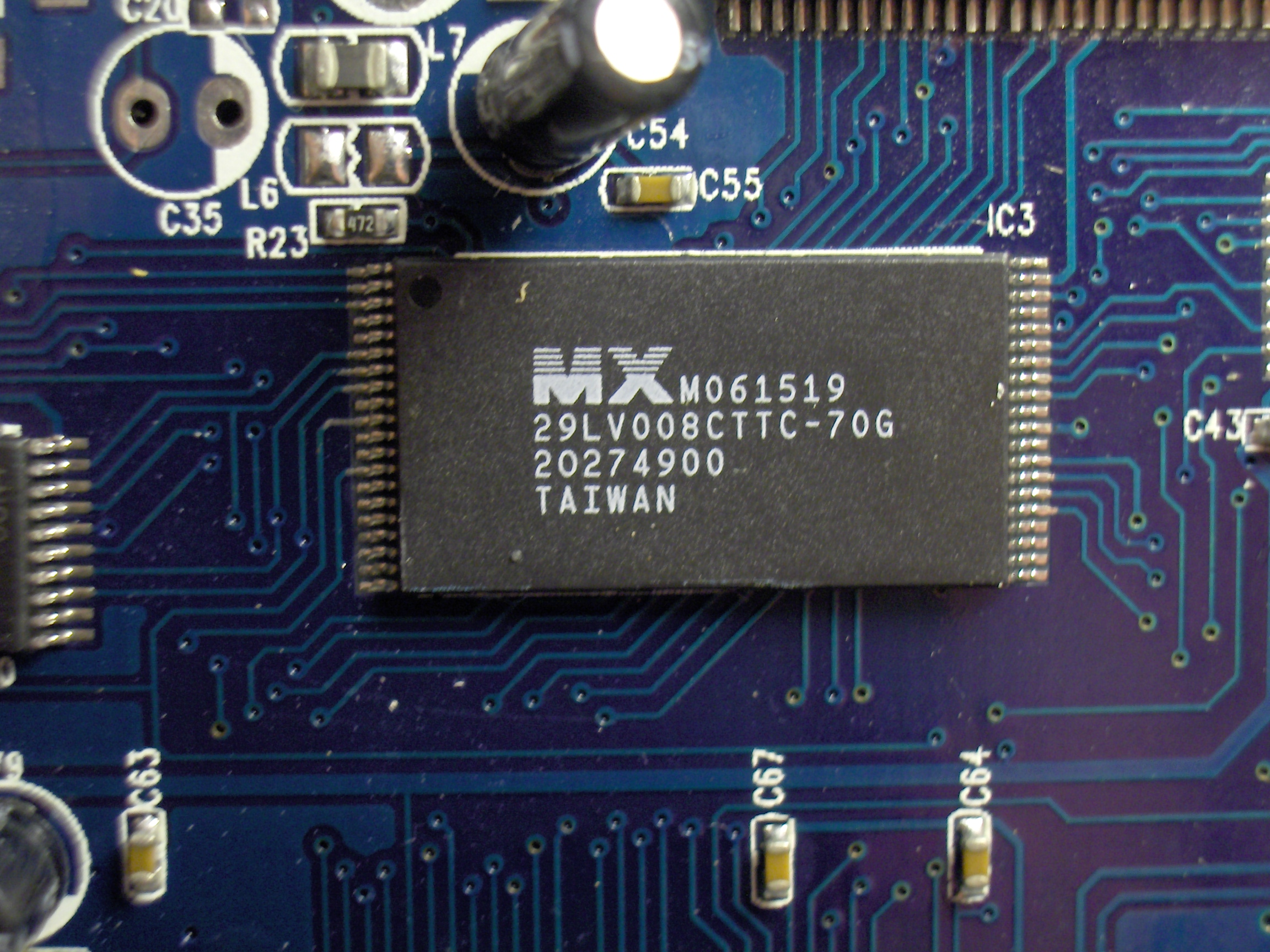

MX 29LV008CTTC program flash. Large
MX29LV008CTTC chip on China Roby PB-35 IP phone inside PCB board.

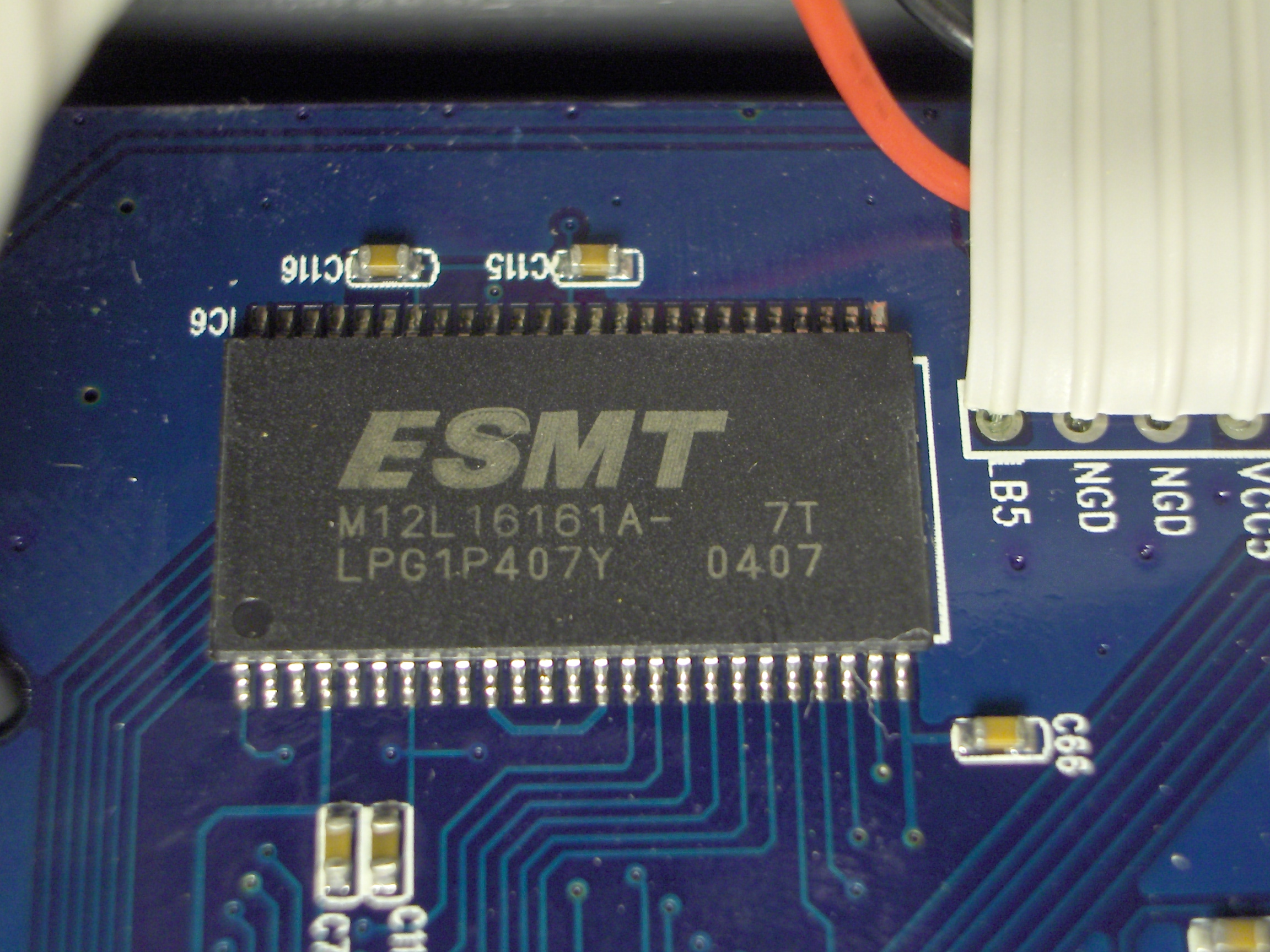

ESMT 1Mx16 bits SDRAM. Large
ESMT 1Mx16-bit SDRAM chip on China Roby PB-35 IP phone inside PCB board.

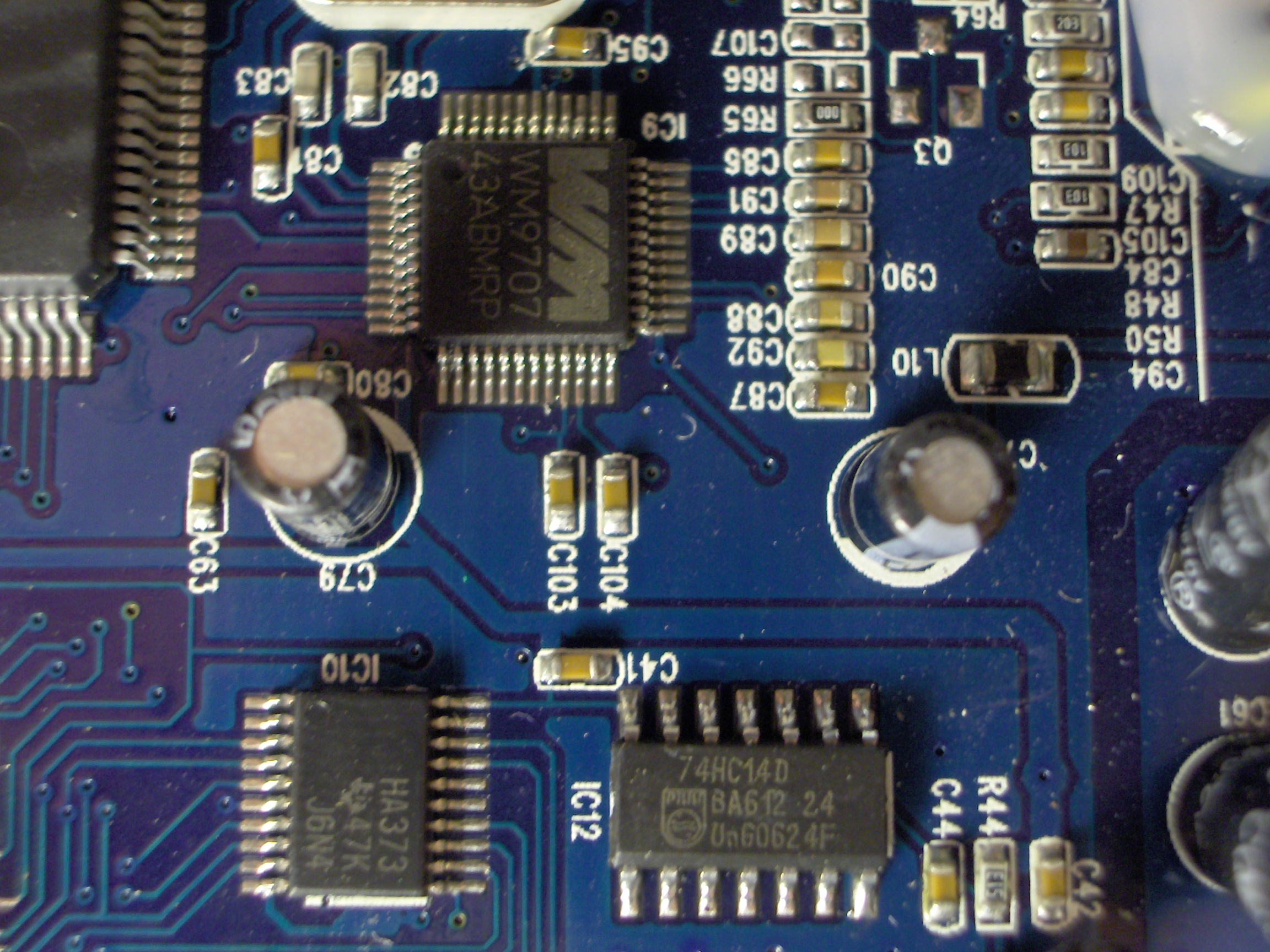

Wolfson AC97 chip WM9707. Large
WM9707 AC97 chip on China Roby PB-35 IP phone inside PCB board.

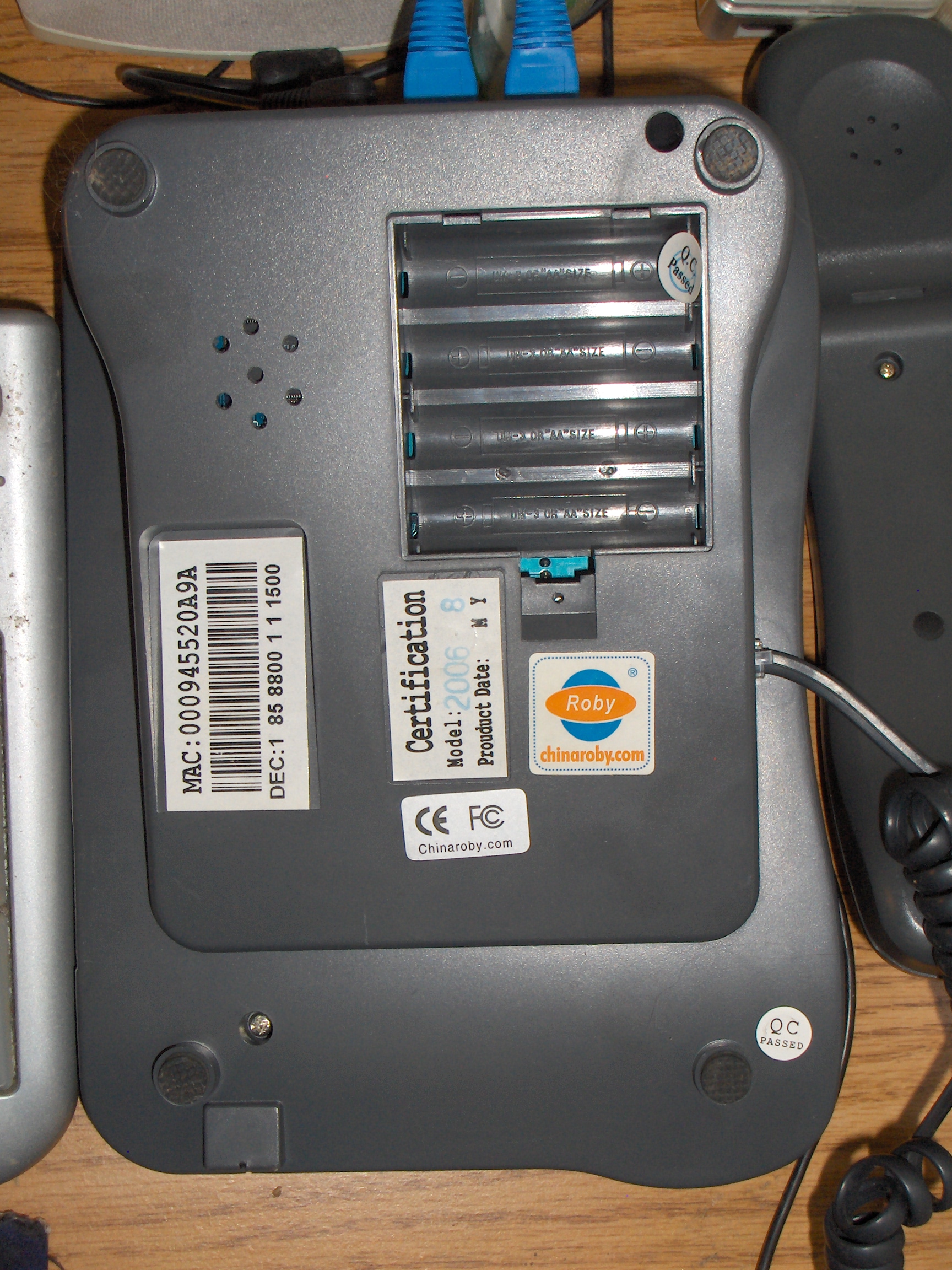

Back. Large
Back of China Roby PB-35 IP phone.

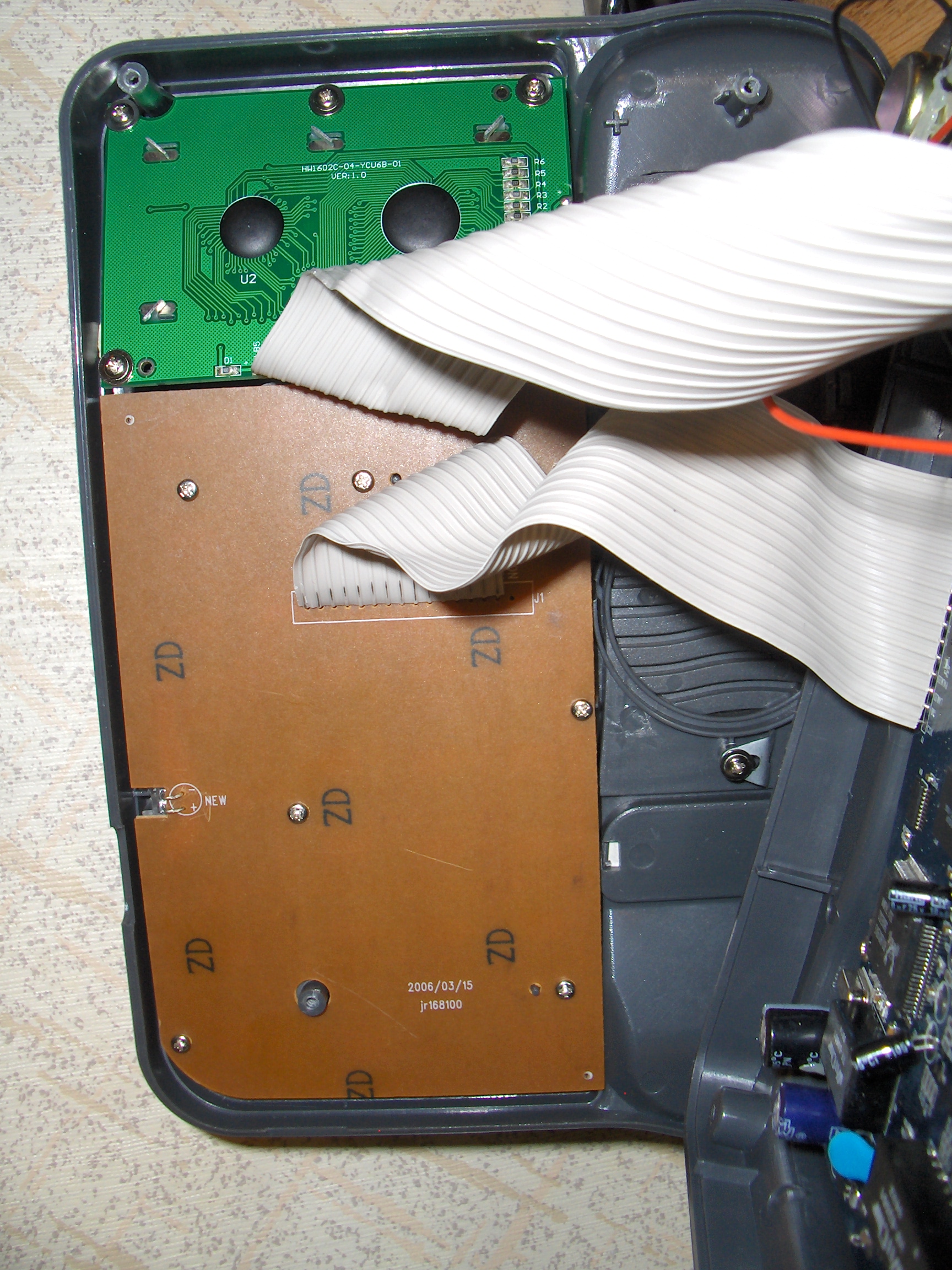

Inside. Large
Inside of China Roby PB-35 IP phone.
Above pictures taken by Gabriel Dungan.
H.mirza provided those software version 1.38.009 JR168S pictures below, We believe it is the same phone as above.

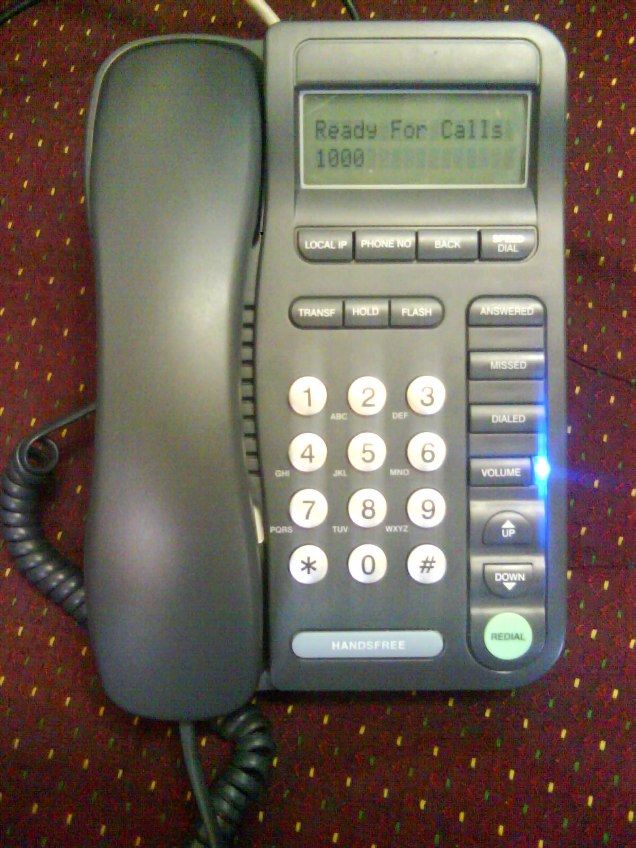

Front of JR168S IP phone.

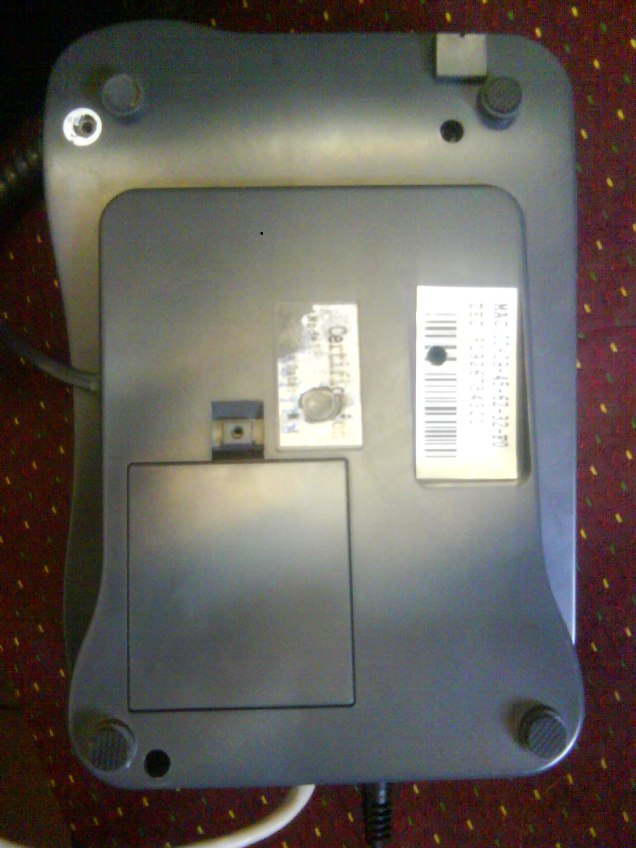

Back of JR168S IP phone.

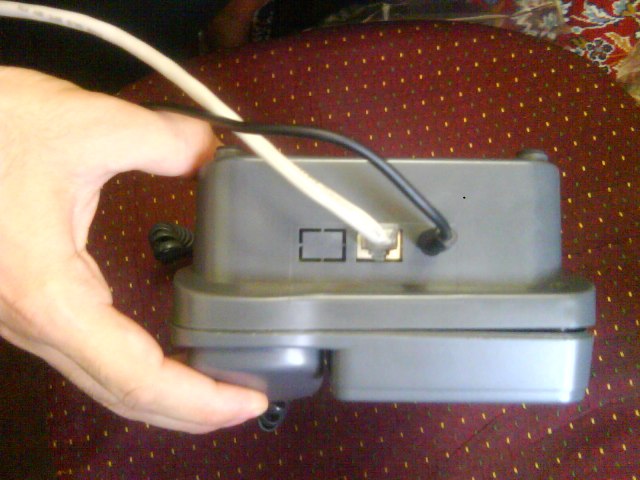

Interface of JR168S IP phone.

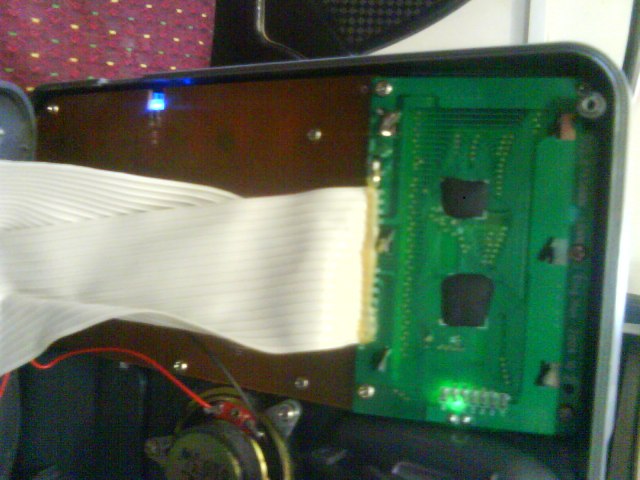

LCD of JR168S IP phone.

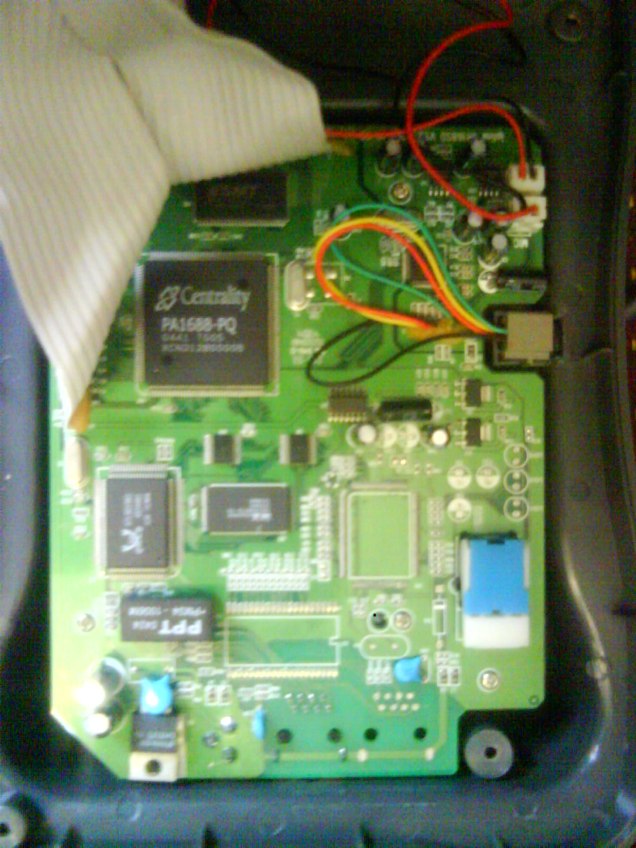

PCB of JR168S IP phone.
